Change Layout

Switches the editing layout of the Mandalachart between a "Normal" layout consisting of a title and a cell, and a "Simple" or "Minimum" layout consisting of cells and memo.
The difference between the Simple and Minimum layouts is that the Simple layout fits the aspect ratio of the screen, while the Minimum layout displays cells in a square regardless of the aspect ratio of the screen.

Normal Layout

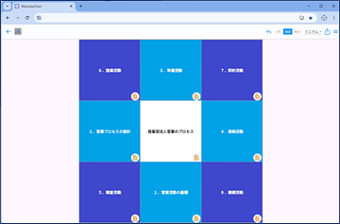

Simple Layout

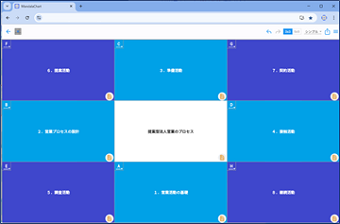

Minimum Layout


This layout switch only changes the display format, but the chart data is the same.
The "cell contents" in the Normal layout are displayed as "Memo" in the Simple and Minimum layouts.

How to switch

You can switch between them by clicking "Normal", "Simple" or "Minimal" in the top right of the screen.

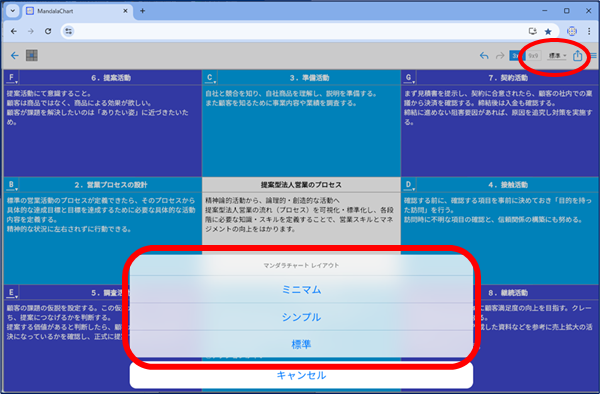

Click the current layout displayed in the top right of the screen to display a pop-up list for selecting the layout, then click the layout you want to switch to.



This layout setting applies to the entire system, not to a per-chart-file basis. The layout setting will also be maintained even after you exit the program.
This layout switching also applies to the 9X9 full display mode.



You can also use the "Image Export" function to output the entire Simple layout (9x9) as an image (png format).


Memo operations (in Simple and Minimum layouts)

Descriptions that into cell in the Normal layout are treated as Memo in the Simple and Minimum layouts.

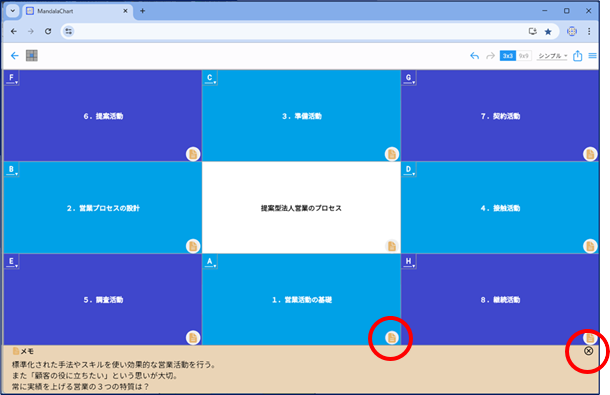

If a Memo has been written, Memo icon will be displayed.
Click this icon and the Memo will be displayed at the bottom of the screen.
If you click another Memo icon, the content of the Memo will change.
Clicking on the Memo field will change to edit mode.
If you do not need to display it, click the in the top right of the Memo field to hide it.
